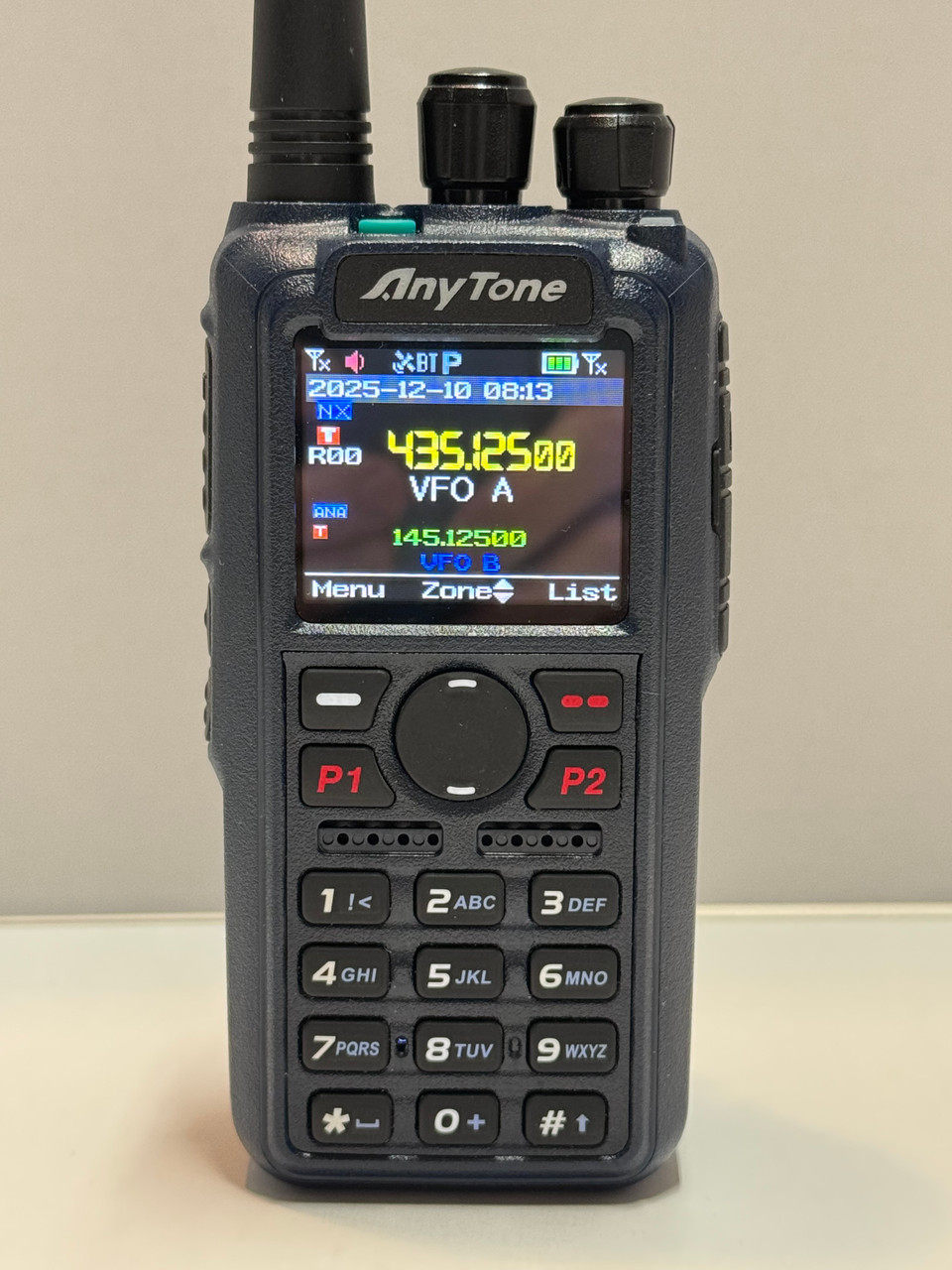

AnyTone AT-D890UV multi digital mode Two Way Radio with GPS and Bluetooth

The AnyTone AT-D890UV is the first well-balanced multi-digital mode radio with nice features, performance, and price.

This radio offers the following new items compared to a D878UV II Plus radio:

1) New Main Control Unit (MCU) chip for dual-mode receiver

2) Multi-digital protocol

3) RX audio Automatic Gain Control (RX AGC)

4) Microphone Automatic Gain Control (Mic AGC)

5) Noice reduction of TX and RX channels

6) Allows U/V digital/analog dual receive

7) New and better Bluetooth device

And more.

Comparison 168, 878UV II Plus, 890UV

Detail Programming Guide

D890UV brochure_251121

Air-Band AM Rx

Cross Band Repeater U-V or V-U

Dual Receive: UV VU (does not support UU or VV RX audio simultaneously)

Dual-Band / Dual-Mode

GPS / APRS

3100 High-Capacity USB-C Battery

Analog Scrambler and Compander

Frequency Range:

87.6~108MHz (Rx only)

108~136MHz (Rx only)

136~174MHz (Tx and Rx)

400~480MHz (Tx and Rx)

Functions:

True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant

Tx Power: VHF: 7/5/2.5/0.2W, UHF: 6/5/2.5/0.2W

Auto-senses digital or analog reception

4000 channels + VFO; 10,000 talk groups with

500,000 digital contacts

Display: 1.77-inch TFT color LCD, dual display; dual standby; dual PA

Bandwidth: 12.5K/25K (Analog); 12.5K (DMR)

Fixed and defined CTCSS/DCS encode and decode

DTMF/2TONE/5TONE encode and decode

Four different Tone-pluse frequencies

Individual/Group/All call

Support Contact Manager

Display the Caller ID and name

SMS via keyboard, One-touch call/text

Zone selection; Ranging function between radios with GPS

ANI function and PTT ID; VOX; Digital Recording and Play

Roaming function; Talker alias function

Emergency alarm (with GPS data transmission)

Built-in Bluetooth module

GPS with APRS location reporting

AES256 and ARC4 digital encryption

Air band AM RX

Cross-band repeater

Scrambler and compander in analog mode

FCC ID: T4K-D890UV

Package included

1 AnyTone AT-D890UV radio

2 Dual Band Antenna (7” and 15” High Gain)

1 3100 Li-ion Battery Pack with USB-C port

1 Battery Charger

1 AC Adaptor

1 TYPE-C cable

1 Belt Clip

1 Hand Strap

1 Instruction Manual

1 USB Programming Cable
